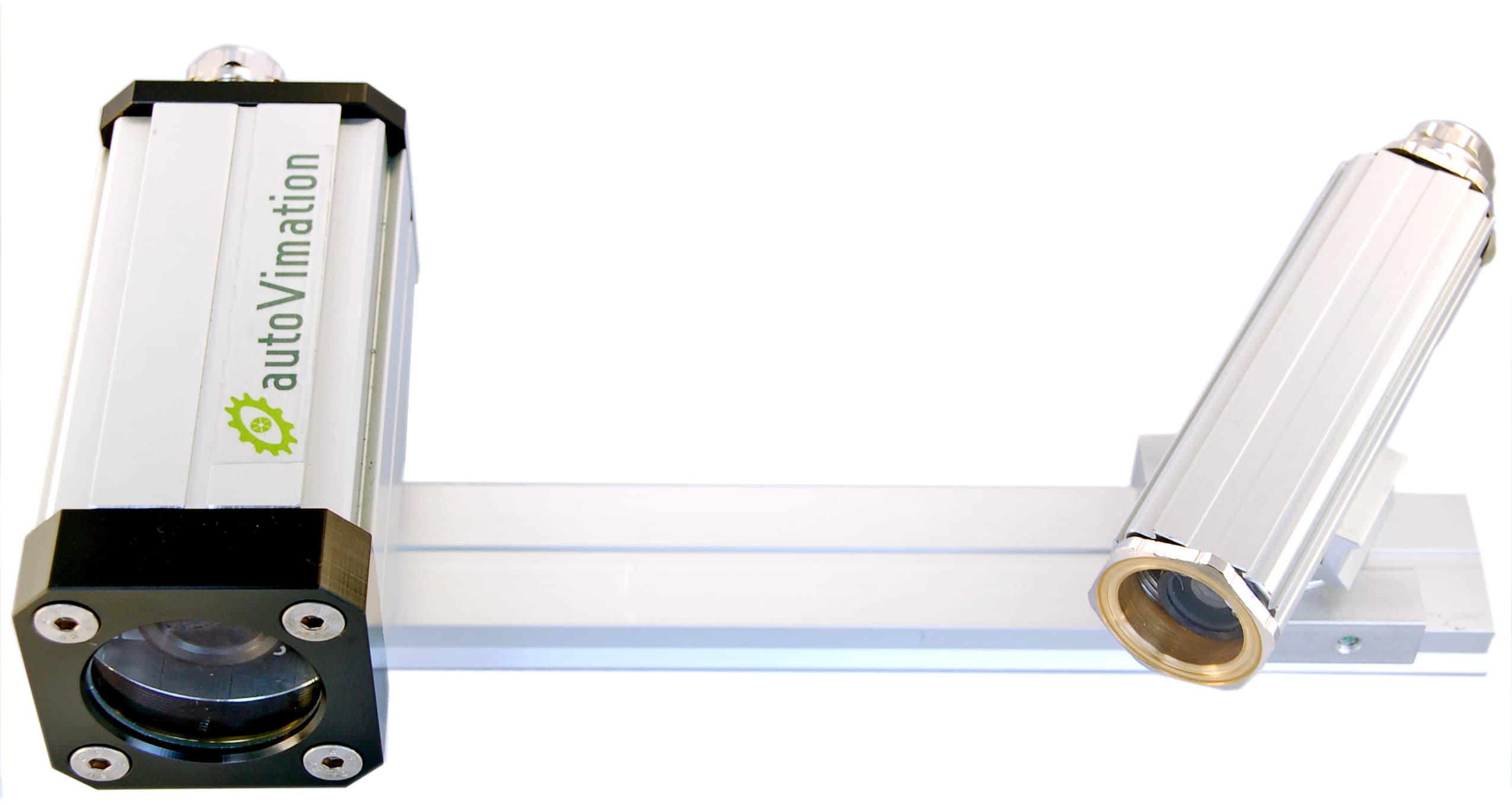

Easy installation: Complete assembly kits for laser triangulation applications

autoVimation's robust, flexibly adjustable mounting solutions allow users to simplify the integration of laser triangulation machine vision systems: they no longer need to manufacture mounting brackets for cameras and lasers, which is very costly and time-consuming. The key component of the assembly kits is a mounting rail measuring up to 2 m, onto which cameras and lasers are mounted either rotatable or fixed at a 90° angle. Also included are mounting brackets which withstand displacement forces of up to 3,000 N and provide many adjustment options: the distance between laser and camera can be up to 2 m, camera enclosure and laser enclosure can be moved along their longitudinal axis and oriented at any angle, and a special clamp within the laser enclosure allows for the laser to be laterally displaced. The robust mounting brackets prevent any relative motion between laser and camera, thereby ensuring the measuring accuracy of laser scanners in rugged industrial environments once they have been calibrated.
