VC DragonCam with Snapdragon processor ships now

Powerful, industrial-grade, economic: VC DragonCam with Snapdragon processor ships now

Vision Components based its new VC DragonCam on the powerful Qualcomm Snapdragon 410 processor. The company thus utilizes the computing power and price efficiency of a quad-core processor that has been proven in countless consumer products for an industrial-grade embedded vision system. The VC DragonCam board camera integrates an image sensor, various customary interfaces, and the processor, which runs a Debian-based operating system, on a small 65 x 40 mm footprint. This makes the programmable embedded vision system ideal for OEM designs.

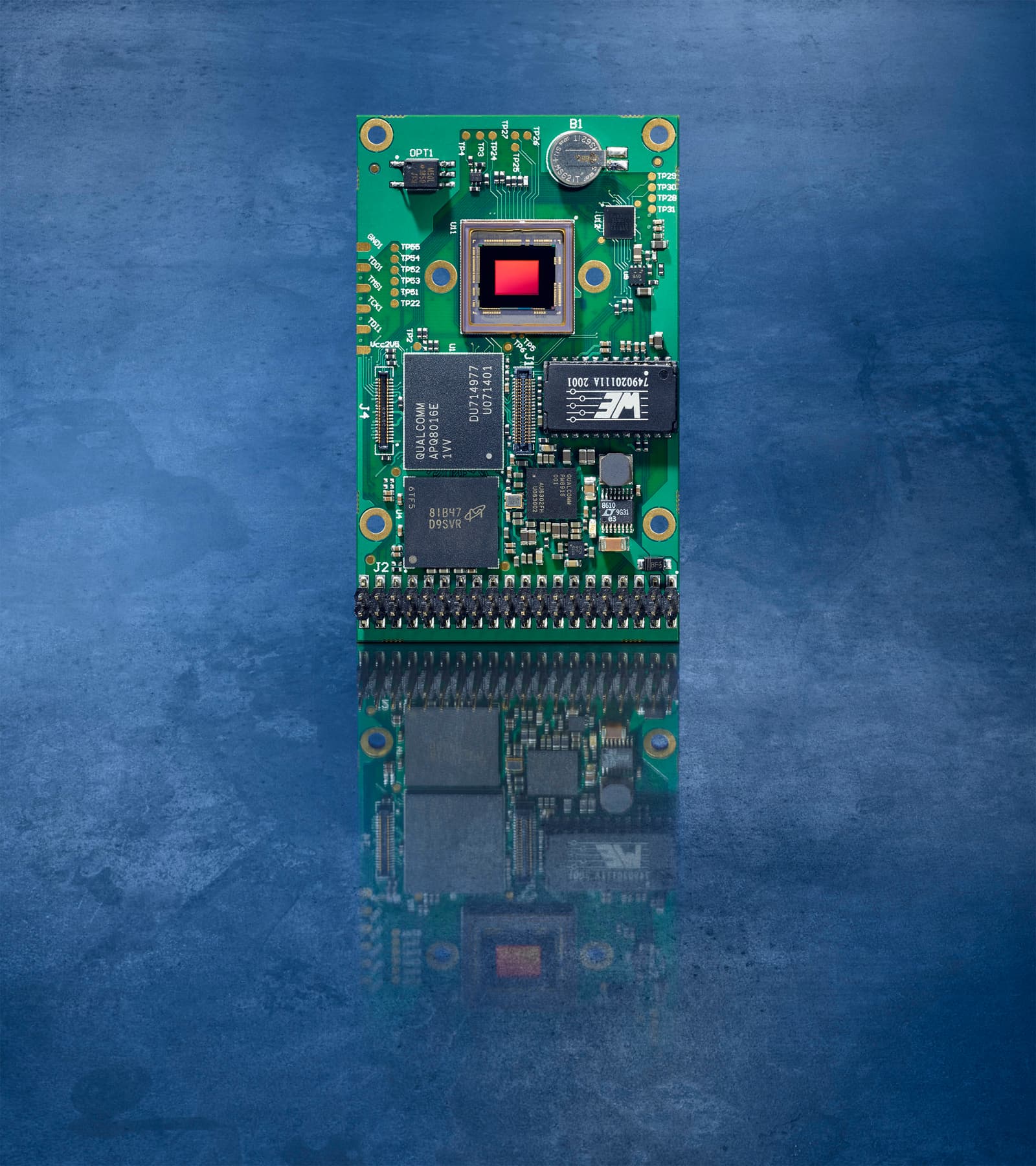

The VC DragonCam integrates an image sensor, a powerful Snapdragon processor, and customary interfaces on a 65 x 40 mm board.

VC DragonCam features twelve GPIOs, 1 GB memory, and up to 32 GB flash memory, with standard interfaces such as GBit Ethernet and RS-232 integrated onboard. Two adapter boards with additional interfaces provided as conventional sockets enable easy connection of peripherals, ideal for fast prototyping. Vision Components integrates high-end CMOS sensors in the new embedded vision system series, starting with Sony Pregius IMX 273. This global shutter sensor featuring a 1456 x 1088 pixel resolution and 225 fps frame rate is optimally suited for applications with short exposure times and high speeds. In addition to the monochrome model, a color camera is available on request. VC DragonCam models with additional Sony sensors are on the road map. As with all VC cameras, the manufacturer ensures long-term availability.
